Honed Tube

High Quality Honing Tubes for Sale at Low Price

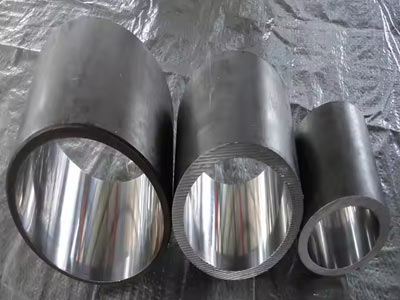

Honed tube is usually a CDS (Cold drawn seamless) steel tube or DOM (Drawn Over Mandrel) steel tube with inside diameter honed or skived &roller burnished, so honed tubing is with extremely precise ID dimensions and smoothly ID surface.

Materials: The most popular material of our honed tubes is carbon steel grade SAE 1020. And we also produce honed cylinder tubes in other materials such as SAE 1026, E355 and ST52.3, stainless steel and so on.

Application: Honed tube for hydraulic cylinder,swivel crane,injection machine and construction machine, chemical Industry, mining.

Tel/whatsapp/wechat: +86 15003822347 (24 hours online)

Email: sale@puwosmls.com

Sample service is supported, please contact me for details.

Product Display

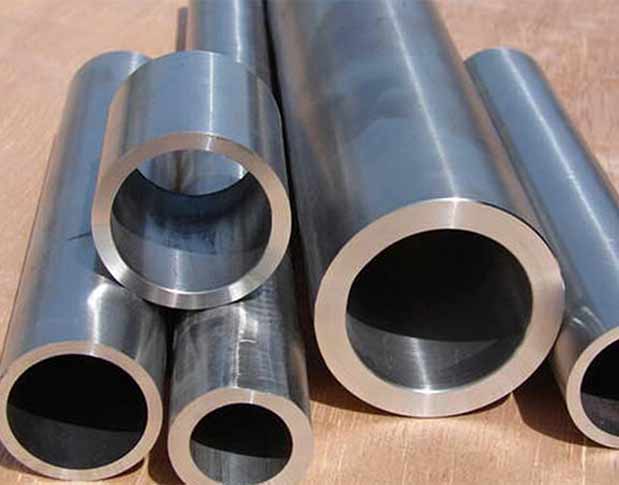

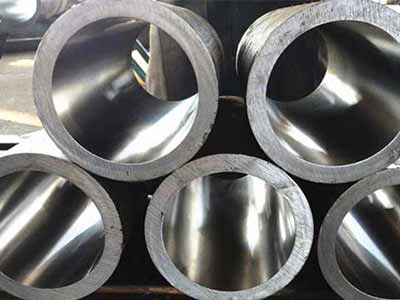

ST52 ST52.3 Honed Tube

Live Chat

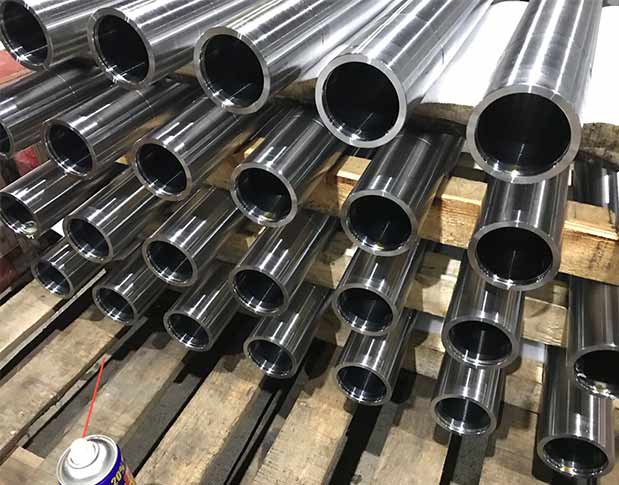

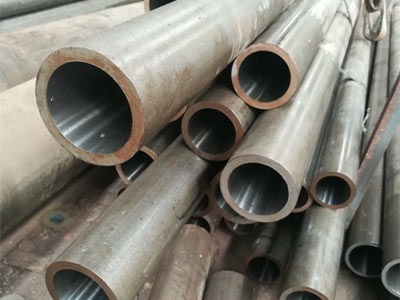

Honed Tube for Hydraulic Cylinder

Live Chat

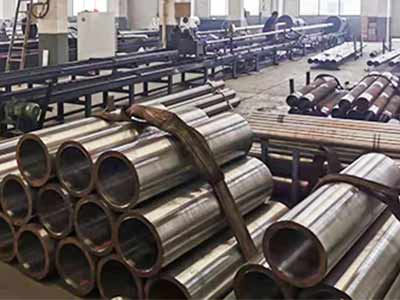

C20 H8 Honed Tubes

Live Chat

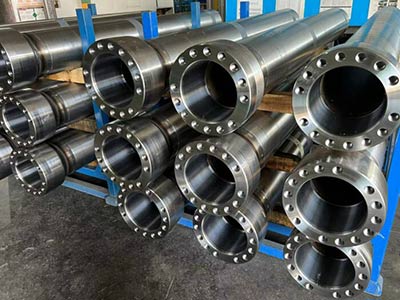

Hydraulic Cylinder Barrel

Live Chat

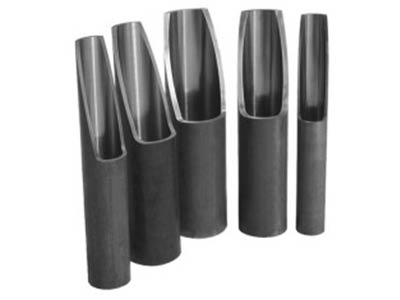

Hydraulic Pneumatic Cylinders Tube

Live Chat

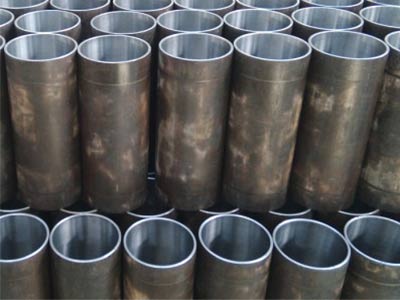

Precision Steel Pipe Manufacturer

Live Chat



Honed Tube Parameters:

Standard DIN2391, EN10305, JIS G3445, ASTM A519, DIN2391, GB/T 8713, GB/T3639-2000, etc.
Metarial C20, CK45, Q355B, Q355D, E355, ST45, ST52, SAE1026, STKM 13C, SAE1026, 20#, etc.
Scope Honed tube for hydraulic cylinder, swivel crane, injection machine and construction machine application
Length 3-9m (Customers usually choose the 4~5.8m)
Technology Honed & SRB(SKIVED AND ROLLER BURNISHED )
Straightness 1/1000



Available steel grade:

SAE/AISI: SAE1020, SAE1026, SAE1045, SAE4130, SAE4140, etc.
DIN: ST52, ST52.3, ST52.4, etc.
EN: E355, C45E, 25CrMo4, 42CrMo4, CK45, S45C, E410, E470, ETC.
GB: 20#, 45#, 16Mn, Q345B, Q345C, Q345D, Q345E, 25Mn, 27SiMn, ETC.



Chemical Composition & Mechanical Property:

Chemical Composition:
Steel grade  Chemical composition,%
C Si Mn P S Cr
20# 0.17-0.24 0.17-0.37 0.35-0.65
16Mn ≤0.2 ≤0.5 1.00-1.60 0.03 0/03 0.25
ST52(E355) ≤0.22 ≤0.55 ≤1.6 0.025 0.025 0.25
SAE1026(25Mn) 0.22-0.28 0.15-0.35 0.6-0.9 0.04 0.05 /
45# 0.42-0.5 0.17-0.37 0.5-0.8 0.025 0.02 0.25
Mechanical Property:
Delivery  cold finished(hard)(BK) Cold drawn and stress-relieved(BK+S)
condition
Steel grade Rm MPa Elongation Rm MPa ReH MPa Elonggation
A5(%) A5(%)
20# ≥550 ≥8 ≥520 ≥375 ≥15
16Mn ≥640 ≥5 ≥600 ≥520 ≥14
ST52(E355) ≥640 ≥5 ≥600 ≥520 ≥14
SAE1026 ≥640 ≥5 ≥600 ≥510 ≥12
45# ≥650 ≥5 ≥600 ≥510 ≥12

Our steel tubes are made from carbon and alloy steels and meet the requirements of European, American and many other national and international standards. Puwo stocks a wide range of sizes and wall thicknesses at very competitive prices. You can contact us to view more information on the steel pipes we sell, or contact your nearest branch for a quote and advice.

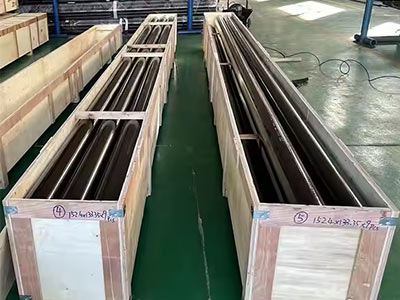

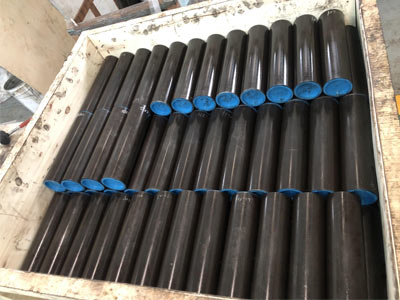

Products and packaging





Get Free Quote Now
